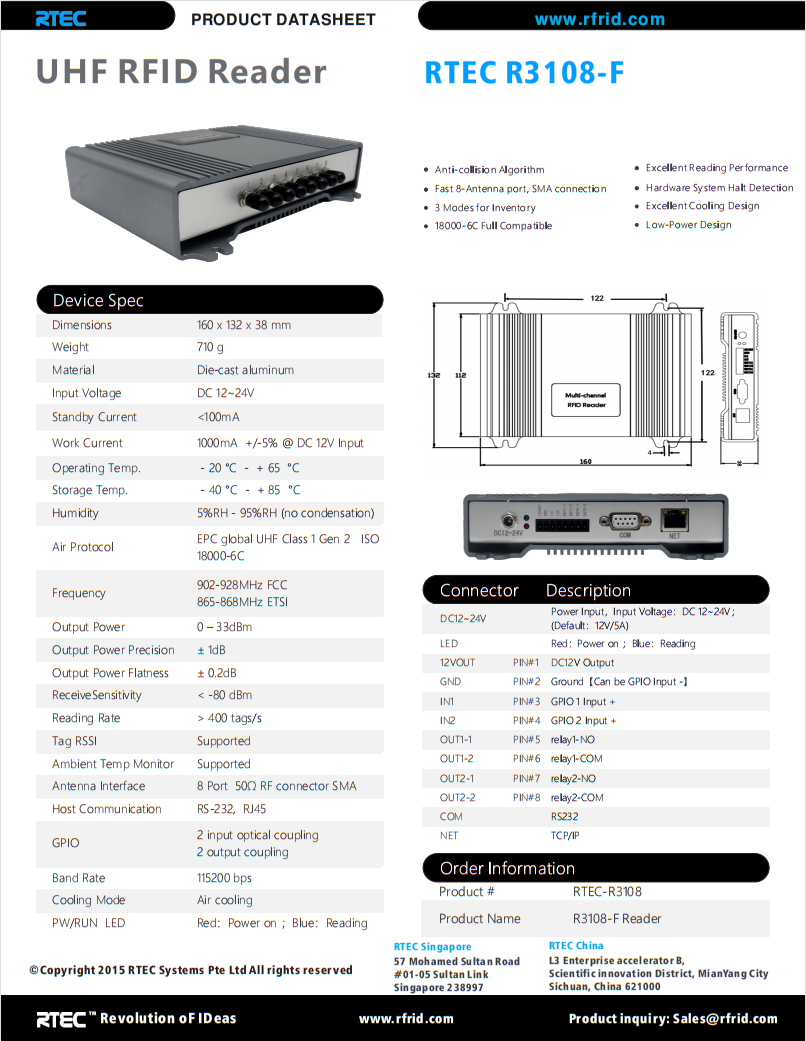

The high-performance eight-channel R3108-F is designed with metal material and has strong anti-interference ability. The R3108-F has powerful radio functions, 8 antennas polling at high speed, and the power and time can be individually configured to meet different coverage requirements. The maximum output power is 33 dBm, the sensitivity is -80 dBm, and it fully supports the EPC grobal UHF Class1 GEN2/ISO 18000-6C air interface protocol. ability. The read-write 3108-F device is mainly aimed at the Internet of Things industry that requires high performance and stability, including warehousing and logistics management, clothing industry, and personnel entry and exit management.
Die-cast aluminum
160 x 132 x 38 mm
- 40 °C - + 85 °C
902-928MHz FCC
865-868MHz ETSI
< -80 dBm
ISO 18000-6C
0 – 33dBm
> 400 tags/s
Supported
RS-232, RJ45
2 input optical coupling 2 output coupling
